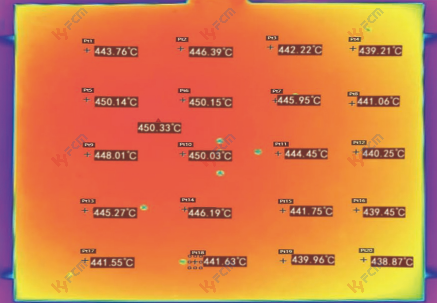

Pulse heating heater is a kind of high-performance heater that can achieve high-speed heating and fast cooling. It can raise the temperature to 450℃ in 5 seconds,and the temperature uniformity can be controlled at ±2%.At the same time,it has the characteristics of high power density,strong heat conduction,excellent thermal shock resistance and so on.
Main Applictions
<<<Swipe left and right to view more parameters
Try dragging left and right
It is mainly used in FC (inverted hot pressing) bonding, TSV (silicon through hole) bonding and ACF (differential electric film) hot pressing.
Performance Parameters
<<<Swipe left and right to view more parameters
Try dragging left and right
Model
FPH10
FPH20
FPH30
Heating effective size
10*10mm
20*20mm
30*30mm
Use temperature range
Normal temperature to 450℃
Normal temperature to 450℃
Normal temperature to 450℃

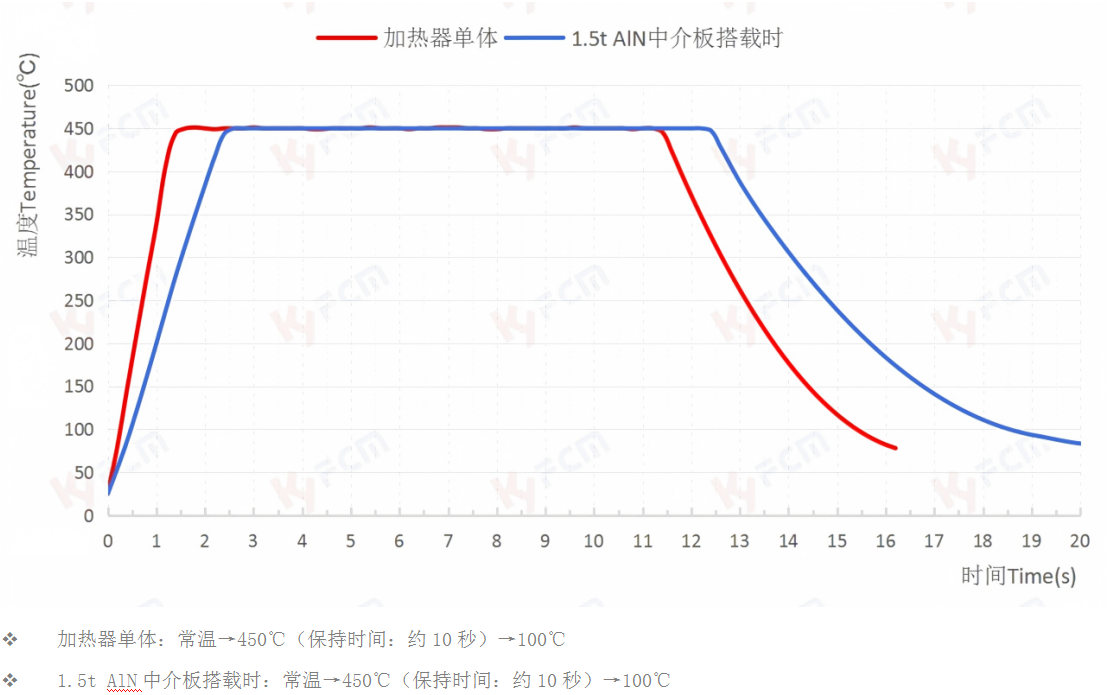

Warming time
(50→450℃）
≤1.4s （Heater monomer）
≤3.0s （Heater monomer）
≤2.2s （Heater monomer）
≤2.5s （When equipped with 1.5t AlN intermediary board）
≤5.0s （When equipped with 1.5t AlN intermediary board）
≤4.5s （When equipped with 1.5t AlN intermediary board）
Cooling time
(450→100℃)
≤4.0s （Heater monomer）
≤6.0s （Heater monomer）
≤15.5s （Heater monomer）
≤6.0s （When equipped with 1.5t AlN intermediary board）
≤10.0s （When equipped with 1.5t AlN intermediary board）
≤20.0s （When equipped with 1.5t AlN intermediary board）
